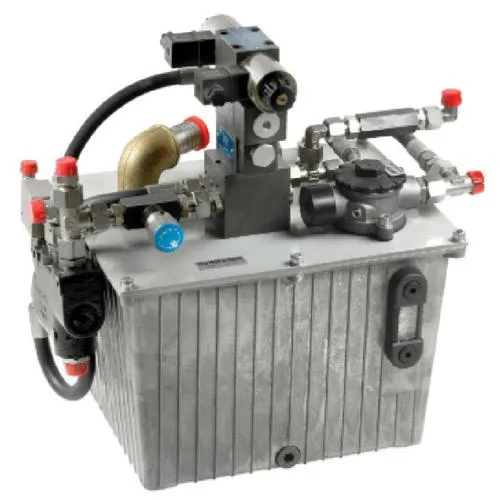

Small storage tank (approx. 20 l) for power steering on vessels without a hydraulic installation. Incl. all required steering and control units. Standard design for pumps with a fixed stroke volume (HT1029) and 24 V valves. Available on request for load sensing pump and 12 V valves. To complete this system, see hydraulic power steering.

• The lid of this hydraulic tank serves as the base plate for all control units required to operate the various hydraulic devices
• VETUS supplies this hydraulic tank ready to use and preinstalled with all control units ordered
• Additional control units can be supplied as separate components, if required
• Tagged for connections
• Mounted so that suction hose runs down to pumps
• Connections for more than one pump
• Mounted on Bulkhead, shelf or platform built by installer or OEM
• Valves mounted on lid for convenience
• Space for the tank must be planned and reserved in the engine room, adjacent to the pumps

  Other Details:

  Weight: 24kg
  Total height: 415mm
  Wide: 470 x 310mm
  Volt: 24 (12 on request)
  Vibration dampers (ordered separately): HT3020 (set of 4)
  Height: 15mm
  Material body: Aluminium alloy
